Inverted Research Microscope
ECLIPSE Ts2R
Do more than before
A compact inverted research microscope configurable with a wide variety of observation methods

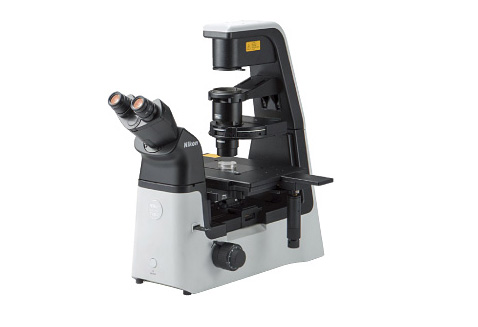

The ECLIPSE Ts2R sets a new standard for the inverted research microscope, providing a wide range of observation methods and applications in a compact body that can easily fit in limited laboratory spaces while maintaining excellent operability.
ECLIPSE Ts2R
Diascopic illumination model
ECLIPSE Ts2R-FL
Diascopic and Epi-fluorescence illumination model
Control buttons on the Ts2R microscope are intuitively located for a streamlined workflow. The on/off and Diascopic/Epi-fluorescence switching controls are located on the front panel while buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively.
The Ts2R’s stage height has been lowered by approximately 30% compared to the standard research microscope*, thereby ensuring a comfortable hand position during repetitive operation and sample exchange. Moreover by lowering the support columns and positioning the camera port on the side of the tube, sample visibility is improved.
The Ts2R can be configured with an optional rectangular mechanical stage. This stage provides a long travel stroke, enabling users to observe an entire well plate from end-to-end. You can also set limits to the travel stroke (three-way) to match frequently used samples or vessels. The stage handle is offered in two lengths, long or short, to further accommodate the user's needs.
Stroke adjustment using the XY limit pin (three way)
The new Contrast Shield accessory (optional) blocks room light, providing an easy and cost-effective method for achieving high signalto-noise fluorescence observation in a brightly lit laboratory.
The high-intensity LED light source enables you to perform a wide variety of observation methods similar to the full-size, inverted research microscope ECLIPSE Ti. The Ts2R-FL model, which offers Epi-fluorescence observation, provides four fluorescence channels and 7 different wavelengths to choose from.
DIC
Epi-fluorescence
Image courtesy of Hideaki Watanabe, Ph.D. and Hisataka Hasegawa, Ph.D.
Nikon's new contrasting technique is compatible with both plastic and glass culture dishes. Unlike phase contrast or NAMC, Emboss Contrast does not require special objective lenses and therefore has minimal effect on Epi-fluorescence observation. Emboss Contrast allows thick samples such as embryos to be easily observed in pseudo-three-dimensional image with great clarity.
Illumination modules including the Epi-fluorescence light source have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that's also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.
The compact size of the Ts2R microscope makes it easier to store and operate inside a laminar flow hood. Additionally, the low stage and side-port camera position reduce user fatigue from repetitive stage manipulation and provides clear visibility of the stage and sample even with the hood sash lowered.
The Ts2R is compatible with Nikon's acclaimed CFI60 objective lenses which provide high numerical apertures and long working distances to deliver stunningly clear images.
Optical accessories achieve the same performance level as Nikon's inverted research microscope ECLIPSE Ti, providing exceptionally clear, sharp images.
| Model | Ts2R | Ts2R-FL | |
|---|---|---|---|
| Optical System | CFI60 Infinity Optical System | ||
| Observation | Bright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss Contrast | Bright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss Contrast, Epi-Fluorescence | |
| Illumination | Diascopic illumination | High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens | |
| Episcopic illumination | — | LED illuminator, built-in Fly eye lens, can be configured with up to 4 different fluorescence LED units; available wavelengths:385, 455, 470, 505, 525, 590, 625 nm | |
| Tube |
| ||
| Eyepiece(F.O.V.) | 10x (22), 12.5x (16), 15x (14.5) | ||
| Focusing | Via nosepiece up/down movement, Stroke (manual): Up 8 mm, down 3 mm Coarse stroke: 5.0 mm per rotation, Fine stroke: 0.1 mm per rotation, Coarse motion torque adjustable, Refocusing mechanism mounted | ||
| Nosepiece | Sextuple nosepiece, With DIC prism slots | ||
| Condenser | Condenser turret, mount up to 7 modules: Phase Contrast, DIC, NAMC, IMSI, Emboss Contrast and ND for Bright Field Use with any one of ELWD condenser lens, LWD condenser lens and NAMC condenser lens | ||
| Slider |
| ||
| Stage |
| ||
| Holder |
| ||
| Epi Fluorescence attachment | — | Epi-fluorescence filter turret (with main body) Filter cubes with noise terminator mechanism Configure with up to 4 Epi-fluorescence filter cubes, one position is used during bright-field observation Attachable Contrast Shield (optional; LWD,ELWD) | |
| Dimensions | 286 (W) ×495 (D) ×542 (H) mm | 286 (W) ×495 (D) ×542 (H) mm | |
| Weight(approx.) | 17kg | 18kg | |
| Rated Voltage/Electric Current | 100V-240V, Less than 0.65A | ||
| Power Consumption (nominal value) | 30W | ||
