Inverted Routine Microscope
ECLIPSE Ts2
Do more than before
Fits in Every Laboratory — Simple to Use & Compact
Utilizing Nikon's industry-leading CFI60 optical system and LED illumination for both Diascopic and Epi-fluorescence imaging, the new ECLIPSE TS2 microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Furthermore, newly developed contrast observation method and improved operability enhance its use for routine laboratory work.

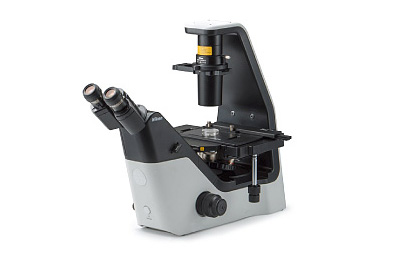

ECLIPSE Ts2
Diascopic illumination model
ECLIPSE Ts2-FL
Diascopic and Epi-fluorescence illumination model
LED light sources and built-in Diascopic/Epi-fluorescence illumination systems reduce setup time and allow users to concentrate on their research.
LED light source is alignmentfree, resulting in faster setup and consistent results. LEDs also eliminate frequent bulb replacements, saving the user time and money. Moreover, the new Contrast Shield (optional) provides high signal-to-noise fluorescence observation even in brightly lit culture rooms.
Control buttons on the Ts2 microscope are intuitively located for a streamlined workflow. Commonly used controls such as the on/off and Diascopic/Epi-fluorescence switching buttons are located at the front panel for easy reach. Buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively, to eliminate confusion and improve workflow efficiency.
The high performance mechanical stage (optional) can accommodate a wide range of flasks and cell culture chambers. The new stage design also directly accommodates micro plates. In addition, the sample holder is easily removed to accommodate large flasks.
Emboss Contrast is a cost-effective optical technique which does not require costly optics. Utilizing just a bright-field objective lens and two contrast sliders, Emboss Contrast provides pseudo-three dimensional and glare-free images for thick specimens such as iPS cells which would normally suffer from halos with conventional phase contrast methods. Additionally, Emboss Contrast is compatible with both glass and plastic culture chambers, making it a very versatile observation technique.
NAMC/40x
Emboss Contrast/40x
Two models are available to meet your needs; a Diascopic illumination model, the ECLIPSE Ts2, and an Epi-fluorescence illumination model, the ECLIPSE Ts2-FL. High-intensity LED sources are employed for both Diascopic and Epi-fluorescence illumination. The built-in fly-eye-lens ensures uniform brightness across the entire field of view.
Illumination modules including the Epi-fluorescence light source have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that's also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.
The camera port is located on the side of the microscope to provide unimpeded viewing of the stage even when placed inside a culture hood.
| Ts2 | Ts2-FL | ||
|---|---|---|---|
| Optical System | CFI60 Infinity Optical System | ||
| Observation method | Bright Field, Apodized Phase Contrast*1, Phase Contrast, Emboss Contrast*2 | Bright Field, Apodized Phase Contrast*1, Phase Contrast, Emboss Contrast*2, Epi-Fluorescence | |
| Illumination | Diascopic illumination | High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens | |
| Episcopic illumination | — | LED illuminator, built-in Fly eye lens Can be configured with upto 3 different fluorescence LED units; available wavelengths: 385, 455, 470, 505, 525, 590, 625 nm | |
| Tube | Inclination: 45 degree, Pupillary distance: 50-75 mm, Siedentopf type Attachable camera port, Eyepiece/Port:100/0:0/100 | ||
| Eyepiece (F.O.V.) | 10x (22) , 15ｘ (16), 20x (12.5) | ||
| Focusing | Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm Coarse stroke: 37.7 mm per rotation, Fine stroke: 0.2 mm per rotation, Coarse motion torque adjustable | ||
| Nosepiece | Quintuple nosepiece | ||
| Condenser | ELWD Condenser (NA 0.3、W.D. 75 mm) | ||
| Slider |
| ||
| Stage |
| ||
| Holder |
| ||
| Epi Fluorescence attachment | — | Epi-fluorescence filter turret (with main body) Filter cubes with noise terminator mechanism Configure with up to 3 Epi-fluorescence filter cubes, Additional positions for bright-field observation Attachable Contrast Shield (optional) | |
| Dimensions | 236 (W) ×548 （D) ×471 （H） mm | 236 (W) ×564 （D） ×471 （H） mm | |
| Weight (approx.) | 13 kg | 14.5 kg | |
| Rated Voltage/Electric Current | 100V-240VAC±10％、50/60Hz、0.35A | ||
| Power Consumption (nominal value) | 15W | ||
