Polarizing Microscopes

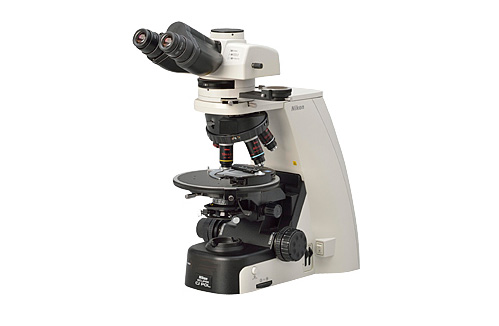

ECLIPSE Ci-POL
A compact polarizing microscope that balances optical performance and ease of use
Diascopic illumination type
Slim and compact, the ECLIPSE Ci-POL is a personal-type polarizing microscope that doesn't occupy your entire desk. With cutting-edge CFI60 infinity optics, it offers advanced optical performance and user-friendly operation. Built-in capture button located near the front of the microscope base allows easy imaging with DS series cameras.
Nosepiece uses the same DIN standard compensator slot design as the LV100N POL to accept various compensators for advanced quantitative measurements. All five objectives are centerable.
The intermediate tube incorporates a Bertrand lens as standard, enabling both observation and capture of conoscopic and orthoscopic images.
The industry-acclaimed infinity optics - the CFI60 system - successfully deliver long working distances and high NA and produce tack-sharp aberration-free images. They employ an eco-glass that is manufactured with no harmful substances such as lead and arsenic.
The episcopic objectives are from the newly developed CFI60-2 series and produce pin-sharp aberration-free images regardless of magnification.
CFI P Achromat objective series
(for diascopic illumination)
CFI TU Plan Fluor EPI P objective series (for episcopic illumination)
Both diascopic and episcopic polarizing observation are possible by mounting the LV-UEPI-N universal epi-illuminator.
The epi-illuminator uses the high-intensity 50W lamp as standard which provides brighter illumination than a conventional 100W lamp. A noise-terminator mechanism is employed to provide sharp images with high S/N ratios.
| Main Body | ||
|---|---|---|
| Optical System | CFI60 infinity | |
| Illumination | 6V-30W halogen lamp; 6V-30W transformer built-in; ND8, ND4 filters built-in | |
| Focusing | Coaxial coarse/fine focus knob; Focus stroke: 30mm; Coarse: 9.33mm per rotation; Fine: 0.1mm; Minimum reading: in 1µm increments | |
| Eyepiece | 10x (F.O.V. 22mm) | |
| Eyepiece tube | P-TT3 Trinocular Tube for polarizing microscopy; P-TB2 Binocular Tube for polarizing microscopy | |
| Intermediate tube | Built-in focusable Bertrand lens removable from optical path; Conoscopic/Orthoscopic observations switchable; Analyzer built-in; Plate/compensator slot | |
| Analyzer | 360° rotary dial; Minimum reading angle 0.1° | |
| Nosepiece | Centering quintuple nosepiece (detachable); DIN slot | |
| Stage | Ball bearing rotary stage; Rotatable 360° horizontally; can be fixed at a specific position; Graduated 360° (in 1° increments); Rotation clamp equipped; Attachable mechanical stage: 35 x 25 mm travel; vernier 0.1mm | |
| Condenser | Dedicated strain-free swing-out type; P Achromat N.A. 0.9 | |
| Polalizer | No scale markings | |
| Objectives | CFI P Achromat 4x, 10x, 20x, 40x, 100x CFI TU Plan Fluor Epi P 5x, 10x, 20x, 50x,100x | |
| Episcopic illuminator | LV-UEPI-N Universal Epi-illuminator Requires an external power supply | |
| Compensators | P-CL Standard 1/4 λ & tint plate, quartz wedge or Senarmont compensator can be inserted into intermediate tube slot | |
| Power consumption | 0.8A/38 W | |
| Weight | Approx. 14kg (standard binocular set) | |
