ECLIPSE Ci-E/Ci-L/Ci-S

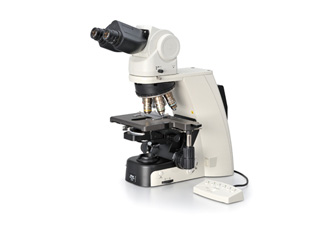

Ci-E Motorized model with LED illumination
Featuring motorized changeover of objective lenses and automatic adjustment of light intensity, ECLIPSE Ci-E has dramatically increased operational efficiency for laboratory tests that require frequent magnification switching. Viewing images, sample changing and capturing images are all conducted with a natural posture. High-luminescent, eco-friendly LED illumination reduces the need for frequent lamp replacement. A variety of accessories are available that support various imaging techniques.
Ci-L Manual model with LED illumination (configured for a camera)
Viewing images, sample changing and capturing images are all conducted with a natural posture. High-luminescent, eco-friendly LED illumination reduces the need for frequent lamp replacement. A variety of accessories are available that support various imaging techniques.
Ci-S Manual model with halogen illumination
ECLIPSE Ci-S microscope, which balances superior functionality with operational ease. Viewing images, sample changing and capturing images are all conducted with a natural posture. A variety of accessories are available that support various imaging techniques.
Enhanced operational ease
Using the ergonomic binocular tube, which features an eyepiece that can be inclined from 10° to 30°and extended up to 40 mm, the microscope can be adjusted to suit natural posture. Moreover, a camera can be mounted via the DSC port. The eyelevel riser lifts the eyepiece tube in 25 mm increments (up to 100 mm*) and increases flexibility for more than one user of different eye-point height.
Ergonomic binocular tube
Eyelevel riser
With the addition of a nosepiece spacer, the stage height can be lowered 20 mm from the standard position, facilitating frequent specimen change. The stage handle height can be changed to ensure a comfortable hand position. The stage height can be locked using the refocusing knob, allowing refocusing after specimen changes. The stage is coated with high-durability scratch-resistant ceramic coating.
Height adjustable stage handle
Ceramic-coated stage
One simple click of the image capture button on the microscope base during observation enables the Digital Sight camera to capture the specimen image.
Observation technique icons on the DS-L3 camera control unit's touch panel provide optimal camera settings for each observation method. In addition, ECLIPSE Ci series microscopes can be connected to remote PCs via a DS-L3 to enable remote viewing, online education, and distance collaboration.
Image capture button
DS-L3 camera control unit
Digital pathology via network
High-contrast images with neutral background coloration regardless of the magnification range can be captured. This observation technique is suitable for observation of unstained structures.
Phase contrast accessories and objective lenses
This is ideal for observing bi-refringent samples such as collagen, amyloids and crystals.
2.8-Dihydroxyadenine crystals, Simple polarizing, CFI Plan Fluor 40x
Department of Clinical laboratory, Nihon University Itabashi Hospital
Simple polarizing accessories
This enables the identification of uric acid crystals forming inside an organism by changing the interference color. It is ideal for gout and pseudo-gout tests.
Sodium urate crystals, Sensitive color polarizing, CFI Plan Fluor 40x
Department of Clinical laboratory, Nihon University Itabashi Hospital
Sensitive color polarizing accessories
Enables clear observation of blood or the minute structure of flagella. Dry- and oil-type condensers are available. The expander lens is used to capture brighter illumination.
The compact epi-fluorescence attachment utilizes the dedicated noise terminator mechanism and allows weakly fluorescing specimens to be captured with great clarity and brightness. The filter turret can accommodate up to four filter cubes, and changing them is simple. High-optical-performance objective lenses for epi-fluorescence imaging, including the CFI Plan Apochromat Lambda series and the CFI Plan Fluor series, are available.
Epi-fluorescence attachment and filter cubes
Specifications
| Ci-E | Ci-L | Ci-S | ||
|---|---|---|---|---|
| Main body | Optical system | CFI60 Infinity Optical System | ||
| Illumination | High luminescent White LED Illuminator (Eco-illumination) | 6V30W Halogen Lamp Built-in ND4, ND8, NCB11 filters | ||
| Automatic intensity reproduction function | - | |||
| Controls | Image capture button | |||
| Nosepiece rotating buttons Remote control pad | - | ND filter IN/OUT switches | ||
| Eyepieces (F.O.V. mm) |
| |||
| Focusing | Coaxial Coarse/Fine focusing, Focusing stroke: 30 mm, Coarse: 9.33 mm/rotation, Fine: 0.1 mm/rotation Coarse motion torque adjustable, Refocusing function | |||
| Tubes | F.O.V. 22 mm (Eyepiece/Port) |
| ||
| F.O.V. 25 mm (Eyepiece/Port) |
| |||
| Nosepieces |
|
| ||
| Stages | Cross travel 78 (X) x 54 (Y) mm, with vernier calibrations, stage handle height and torque adjustable for all stages
| |||
| Condensers | Motorized |
| - | |
| Manual | Focusing stroke: 27 mm
| |||
| Observation methods* | Brightfield, Epi-fluorescence, Darkfield, Phase contrast, Simple polarizing, Sensitive color polarizing | |||
| Epi-fluorescence attachment |
| |||
| Epi-fluorescence light source |
| |||
| Power consumption | 13W (Brightfield configuration) | 6W (Brightfield configuration) | 38W (Brightfield configuration) | |
| Weight (approx.) | 15.4 kg (Binocular standard set) | 13.4 kg (Binocular standard set) | 13.4 kg (Binocular standard set) | |
