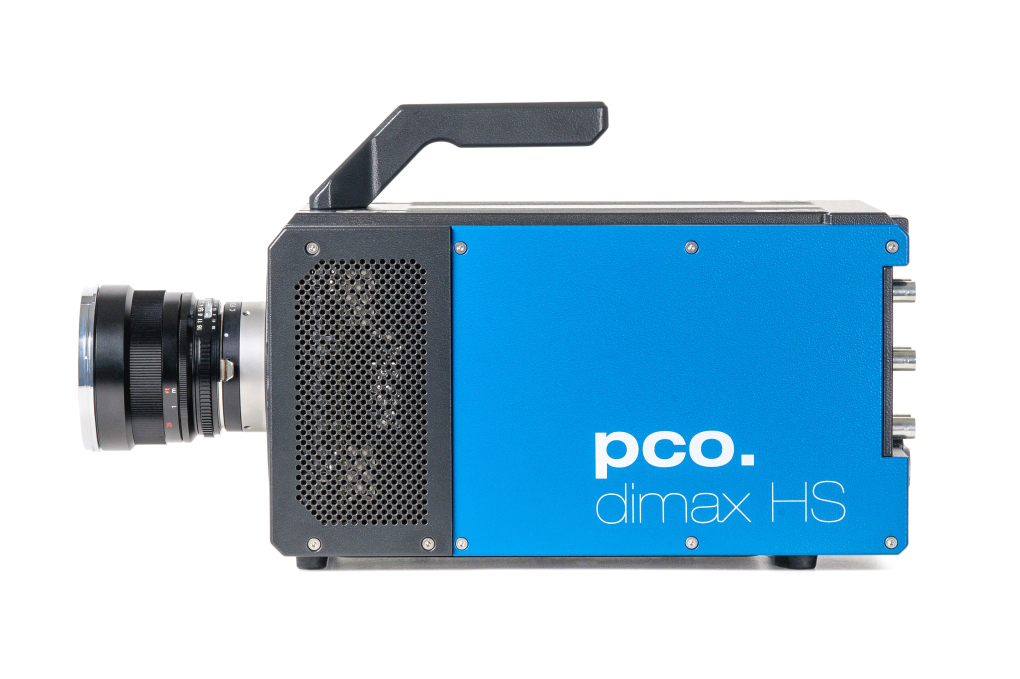

highest frame rates for extreme fast events

The pco.dimax HS series combines, with its advanced CMOS- and electronics technology, extreme high frame-rates, best light sensitivity and a real 12 bit dynamic range.

With more than 7000 fps at a resolution of 1 megapixel rapid events can be precisely imaged in super slow motion. Due to a variety of trigger- and synchronization possibilities the HS-cameras are suitable for challenging setups like engine research, flow analysis, material testing and further application areas.



Key Features



  • 7039 fps @ 1 MPix resolution (1000 x 1000 pixel)
  • excellent light sensitivity
  • 12 bit dynamic range
  • NO additional black reference calibration required
  • 9, 18, 36 GB inbuilt image memory
  • exposure time range 1.5 µs - 40 ms
  • multiple trigger options
  • master-slave camera synchronisation (up to 5 cameras)
  • IRIG B timecode function
  • Interfaces: USB 3.0, GigE/USB 2.0, CameraLink


parameterunitsetpointpco.dimax HS1
resolution
(hor x ver)
pixel 1000 x 1000
pixel size
(hor x ver)
  11.0 x 11.0
peak quantum
efficiency
%@ 600 nm typ.50
dynamic range A/Dbit 12
readout noisee- rms < 20
imaging frequency,
frame rate
fps@ full frame> 7000
exposure time
range
s 1.5
region of interest
(ROI)
 steps of2 x 2
optical input  Nikon f-mount
data interface  GigE, USB 2.0,
camera link (base),
USB 3.0





Areas of application

material testing,   airbag inflationtensile testing,   spray analysiscombustion analysis,   deformationhypervelocity impact studies,   fuel injection,  ballistics,   abrasive material research,  sparks in electronical switches,   highspeed photogrammetry
