Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

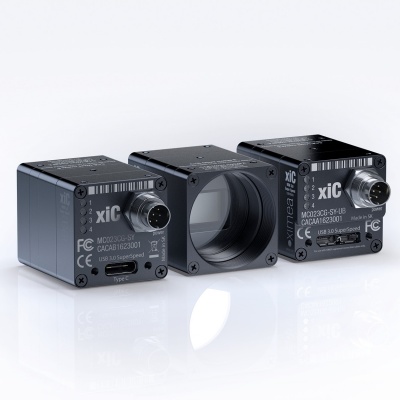

8.9 MP Monochrome CMOS Camera with USB 3.1 Gen 1 Interface.
Check conditions for the model version with Sony IMX267 sensor.
Specifications: | |
| Resolution | 4112 x 2176 |
| Sensor type | CMOS Matrix B/W |
| Sensor model | Sony IMX255 |
| Sensor size | 16.1 mm |
| Pixel size | 3.45 µm |
| Bits per pixel | 8, 10, 12 |
| Dynamic range | 70.5 dB |
| Signal to noise ratio | 40.3 dB |
| Frame rates | 43 fps |
| Image data interface | USB 3.1 Gen 1 |
| Data I/O | GPIO IN, OUT |
| Power requirements | 3.25 Watt |
| Lens mount | C or CS Mount |
| Weight | 38 grams |
| Dimensions WxHxD | 26 x 26 x 33 mm |
| Operating environment | 50 °C |
| Customs tariff code | 8525.80 30 (EU) / 8525.80 40 (USA) |
| ECCN | EAR99 |
MD091MU-SY
|
MC124MG-SY
|
