pco.pixelfly usb

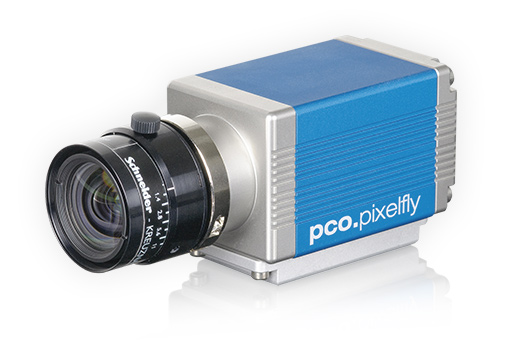

Ultra-compact 14 bit CCD camera

This high performance digital 14bit CCD camera system features state of the art in CCD and electronics technology. The pco.pixelfly usb has extraordinary high quantum efficiency, high dynamic range and very low readout noise. Available exposure times range from microseconds to a minute.

Key Features

ultra compact design
dimensions: 72 x 39 x 47 mm
readout noise typ. 6 e- rms
14 bit dynamic range
high resolution 1392 x 1040 pixel
superior quantum efficiency up to 62%
exposure times from 1 µs - 60 s
temperature compensated
USB 2.0

Technical Data

parameter	unit	setpoint	pco.pixelfly usb
resolution (hor x ver)	pixel		1392 x 1040
pixel size (hor x ver)			6.45 x 6.45
peak quantum efficiency	%	@ 540 nm typ.	> 60
dynamic range A/D	bit		14
readout noise	e- rms	@ 12 MHz @ 24 MHz	6 7
imaging frequency, frame rate	fps	@ full frame @ 12 MHz @ full frame @ 24 MHz	7.3 13.5
exposure time range	s		1
binning	pixel	analog	1 x 1 .. 4 x 4
optical input			c-mount, Nikon adapter
data interface			USB 2.0
interframing time	s		1

QE Curves

Quantum efficiency curves of the pco.pixelfly usb CCD image sensor with two operation modes (measured by pco).

Areas of application

low light level imaging , combustion imaging , machine vision , industrial applications , particle image velocimetry (PIV) , flow visualization (hydrodynamics) , industrial oem applications , material testing
