CCD 카메라

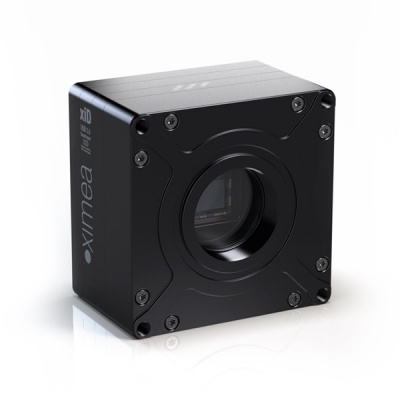

MD061MU-SY

제이엠제이 XIMEA 0 3,273 2017.04.13 23:25

6.1 Megapixel Monochrome CCD (Sony ICX694) Camera with USB 3.0
Multi-Tap (Quad Tap) readout from 4 channels allows exceptional 28 Fps

Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.

Specifications:
Resolution	6.1 MP 2758 x 2208 pixel
Sensor type	CCD B/W
Sensor model	SONY ICX694 ALG
Sensor size	16 mm
Sensor active area	12.5 x 10 mm
Pixel size	4.54 µm
Bits per pixel	8, 10, 12, 14 Bits
Readout noise typ.	8.8 / 8.9 / 12.3 e-
Dynamic range	68.7 / 67.4 / 64.4 dB
Signal to noise ratio	44.1 / 43.5 / 43.9 dB
Gain range	41 dB
Exposure range	49us - 1000s
Frame rates	28 Fps
On-chip binning	YES
Trigger to exposure delay	YES
Image data interface	USB 3.0 Superspeed
Data I/O	2IN/2OUT
Power requirements	3.9 Watt
Lens mount	C-Mount
Weight	320 grams
Dimensions WxHxD	60 x 60 x 38 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99
