CB500CG-CM

제이엠제이 XIMEA 0 2,044 2017.04.13 23:01

WILL BE AVAILABLE SOON

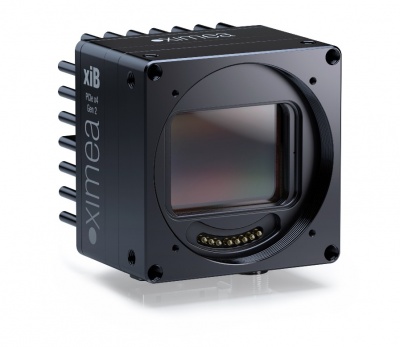

50 Megapixels Color CMOS camera with CMOSIS CMV50000

PCIe speed of 20 Gbit/s allows 22 Fps at 12 bit

8K, compact, high resolution camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.

With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.

Specifications:
Resolution	47.5 MP 7920 x 6004
Sensor type	CMOS RGB Color
Sensor model	CMOSIS CMV50000
Sensor size	35 mm
Sensor active area	36.4 x 27.6 mm
Pixel size	4.6 μm
Bits per pixel	12, 14
Dynamic range	60 dB
Frame rates	26 Fps
Image data interface	PCI Express (PCIe)
Data I/O	2IN/2OUT
Power requirements	9 Watt
Cooling	Heatsink optional
Lens mount	Active EF-mount
Weight	175 grams
Dimensions WxHxD	60 x 60 x 38 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99

CB200CG-CM

20 Mpix at 33 Fps
CMOSIS CMV20000
41 mm Color CMOS
PCI Express camera - 20 Gbit/s

CB120CG-CM

12 Mpix at 133 Fps
CMOSIS CMV12000
28 mm Color CMOS
PCI Express camera - 20 Gbit/s
