Educational Polarizing Microscopes
ECLIPSE E200POL
A cost-efficient polarizing microscope incorporating industry-acclaimed CFI60 infinity optics

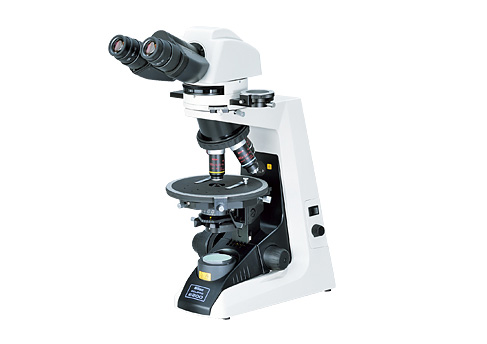

ECLIPSE E200POL Standard Set
(Filter is optional)
The E200POL features an extremely compact body that takes up little space on your desk. And because the E200POL's design is based on the ECLIPSE E200 biological microscope, it shares the same objectives and uses many of the accessories created for higher-grade ECLIPSE series microscopes.
Senarmont and quartz wedge compensators are available.
CFI60 optics provide longer working distances and higher N.A.'s to deliver startlingly clear images at any magnification because chromatic aberrations are corrected over the entire field of view.
The reversed-type quadruple nosepiece provides more space at the front of the stage to make handling of specimen slides fast and easy.
The Siedentopf-type eyepiece tube — P-TB2 binocular or P-TT3 trinocular — is inclined at 25° to ensure a natural posture for more comfortable viewing.
The stage can be easily lowered to change specimens or oil the slide by simply pushing it down. It returns to its original position when the hand is removed. This eliminates the need to refocus the image manually, making specimen handling safer and easier.
The lamp can be easily replaced by simply opening the lens unit cover.
ECLIPSE E200POL Basic Set
(Filter is optional)
| Optical system | CFI60 infinity optical system |
|---|---|
| Eyepieces | Standard set: 10x (F.O.V. 22mm), CM type with 90°crosshair and micrometer scale Basic set: 10x (F.O.V. 20mm) |
| Tubes | Standard set: Binocular P-TB2, Trinocular P-TT3 Basic set: Binocular E2-TB, Trinocular E2-TF |
| Intermediate tube | Built-in focusable Bertrand lens removable from optical path; Built-in analyzer removable from optical path; Conoscopic/Orthoscopic observations switchable; With plate/compensator slot |
| Analyzer | 360° rotary dial; Minimum reading angle 0.1° |
| Nosepiece | Quadruple nosepiece fixed to main body |
| Coarse/fine focusing | Fine: 0.2mm per rotation; Coarse: 37.7mm per rotation; Minimum reading: 2 microns on left-side fine control knob; Coarse motion torque adjustable; Refocusing system incorporated in stage |
| Stage | 160mmø circular graduated stage; 1° increments and vernier reading 0.1° |
| Illumination | Built-in 6V-30W halogen lamp precentered and prefocused; Continuously variable intensity control |
| Objectives | CFI P Achromat 4x, 10x, 20x, 40x, 100x oil |
| Condenser | Dedicated strain-free swing-out type |
| Polarizer | Attachable to bottom of condenser |
| Compensators | Standard 1/4 λ and tint plate; Quartz wedge or Senarmont compensator can be inserted into intermediate tube slot |
