NIKON

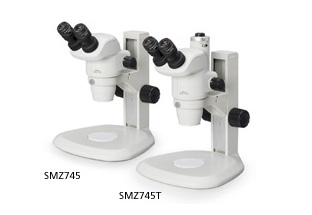

SMZ745/745T

제이엠제이 0 1,482

Nikon's stereoscopic microscope with 7.5x zoom and 115 mm working distance — a superior model in this category

7.5x zoom: extremely high zoom range

The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.

Superior 115 mm working distance

As well as high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.

Trinocular optical head is ideal for monitoring and digital imaging
(SMZ745T only)

The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight series camera can be attached.


With a Digital Sight series camera for microscopes


Optical path switching lever

Three “A” design

The airtight, anti-mold, anti-electrostatic design makes the SMZ745 suitable for use in a range of working environments.

  • *The SMZ745T has an anti-mold, anti-electrostatic design.

Optical systemGreenough optical system
Total magnification3.35-300x (depending on eyepiece and auxiliary objective used)
Vertical tube (SMZ745T)Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD
Eyepiece tubeFixed type
Eyepiece inclination45 °
Interpupillary distance adjustment52-75 mm
Eyepieces (with diopter adjustment)C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5), C-W 30x (F.N. 7)
Zoom range0.67-5x
Zoom ratio7.5 : 1
Auxiliary objectivesG-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm), G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm)
Working distance115 mm (standard)
Weight1.6 kg (SMZ745)
1.8 kg (SMZ745T)
  • F.N.: Field Number

Dimensional Diagrams of SMZ745
unit:mmSMZ745

Dimensional Diagrams of SMZ745T
unit:mm

SMZ745T
