ECLIPSE Ts2

제이엠제이 도립현미경 0 17,004 2016.02.24 19:36

Inverted Routine Microscope

ECLIPSE Ts2

Easy to Work withNew Contrasting Technique, "Emboss Contrast"Compact, streamlined body for efficient observation

Do more than before
Fits in Every Laboratory — Simple to Use & Compact

Utilizing Nikon's industry-leading CFI60 optical system and LED illumination for both Diascopic and Epi-fluorescence imaging, the new ECLIPSE TS2 microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Furthermore, newly developed contrast observation method and improved operability enhance its use for routine laboratory work.

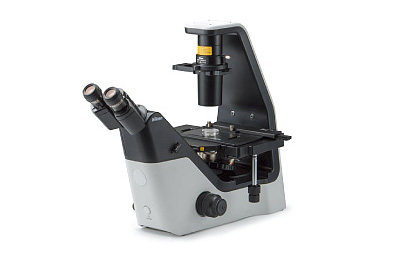

ECLIPSE Ts2
Diascopic illumination model

ECLIPSE Ts2-FL
Diascopic and Epi-fluorescence illumination model

Easy to work with

Efficient and comfortable observation

LED light sources and built-in Diascopic/Epi-fluorescence illumination systems reduce setup time and allow users to concentrate on their research.

Faster, brighter images with LED illumination

LED light source is alignmentfree, resulting in faster setup and consistent results. LEDs also eliminate frequent bulb replacements, saving the user time and money. Moreover, the new Contrast Shield (optional) provides high signal-to-noise fluorescence observation even in brightly lit culture rooms.

New Streamlined Operation

Control buttons on the Ts2 microscope are intuitively located for a streamlined workflow. Commonly used controls such as the on/off and Diascopic/Epi-fluorescence switching buttons are located at the front panel for easy reach. Buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively, to eliminate confusion and improve workflow efficiency.

Easy-to-use Mechanical Stage

The high performance mechanical stage (optional) can accommodate a wide range of flasks and cell culture chambers. The new stage design also directly accommodates micro plates. In addition, the sample holder is easily removed to accommodate large flasks.

New Contrasting Technique, "Emboss Contrast"

Emboss Contrast is a cost-effective optical technique which does not require costly optics. Utilizing just a bright-field objective lens and two contrast sliders, Emboss Contrast provides pseudo-three dimensional and glare-free images for thick specimens such as iPS cells which would normally suffer from halos with conventional phase contrast methods. Additionally, Emboss Contrast is compatible with both glass and plastic culture chambers, making it a very versatile observation technique.

NAMC/40x

Emboss Contrast/40x

Compact, streamlined body for efficient observation

LED-based high-quality Diascopic and Epi-fluorescence observation

Two models are available to meet your needs; a Diascopic illumination model, the ECLIPSE Ts2, and an Epi-fluorescence illumination model, the ECLIPSE Ts2-FL. High-intensity LED sources are employed for both Diascopic and Epi-fluorescence illumination. The built-in fly-eye-lens ensures uniform brightness across the entire field of view.

Compact and highly stable body

Illumination modules including the Epi-fluorescence light source have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that's also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.

The camera port is located on the side of the microscope to provide unimpeded viewing of the stage even when placed inside a culture hood.

Ts2	Ts2-FL
Optical System		CFI60 Infinity Optical System
Observation method		Bright Field, Apodized Phase Contrast1, Phase Contrast, Emboss Contrast2	Bright Field, Apodized Phase Contrast1, Phase Contrast, Emboss Contrast2, Epi-Fluorescence
Illumination	Diascopic illumination	High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens
Illumination	Episcopic illumination	—	LED illuminator, built-in Fly eye lens Can be configured with upto 3 different fluorescence LED units; available wavelengths: 385, 455, 470, 505, 525, 590, 625 nm
Tube		Inclination: 45 degree, Pupillary distance: 50-75 mm, Siedentopf type Attachable camera port, Eyepiece/Port:100/0:0/100
Eyepiece (F.O.V.)		10x (22) , 15ｘ (16), 20x (12.5)
Focusing		Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm Coarse stroke: 37.7 mm per rotation, Fine stroke: 0.2 mm per rotation, Coarse motion torque adjustable
Nosepiece		Quintuple nosepiece
Condenser		ELWD Condenser (NA 0.3、W.D. 75 mm)
Slider		Precentered or Centering PH Slider, 10x, 20x, 40x Objectives available for phase contrast Emboss contrast sliders (both condenser-side slider and eyepiece-tube-side slider must be mounted), 10x, 20x, 40x objectives available for emboss contrast
Stage		Plain Stage, stage size: 170 (X) x 247 (Y) mm With Glass Type Stage Ring Mechanical stage (optional), stroke：126 (X) x78 (Y) mm Accepts 5 types of micro-testplate, well clamper and stage clip
Holder		C-S-HP35 Petridish Holder 35 mm C-S-HLP100 Petridish Holder 100 mm C-S-HT Terasaki Holder for Terasaki holder and φ65 dish C-S-HS Glass Slide Holder for glass slides, φ54 dish and hemocytometer C-S-HU Universal Holder for Terasaki plate holder, glass slide, φ35-65 dish and hemocytometer
Epi Fluorescence attachment		—	Epi-fluorescence filter turret (with main body) Filter cubes with noise terminator mechanism Configure with up to 3 Epi-fluorescence filter cubes, Additional positions for bright-field observation Attachable Contrast Shield (optional)
Dimensions		236 (W) ×548 （D) ×471 （H） mm	236 (W) ×564 （D） ×471 （H） mm
Weight (approx.)		13 kg	14.5 kg
Rated Voltage/Electric Current		100V-240VAC±10％、50/60Hz、0.35A
Power Consumption (nominal value)		15W

*1APC (Apodized Phase Contrast) is a type of phase contrast observation with reduced halo, thanks to Nikon’s unique lens coating.
*2Emboss contrast is Nikon’s unique contrast observation method. It provides pseudo-three-dimensional images using focal illumination, which gives high contrast to samples.
