제이엠제이

XIMEA

MC050MG-SY

제이엠제이 0 2,195



  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 5 Mpix at 76 fps (up to 165 Fps with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

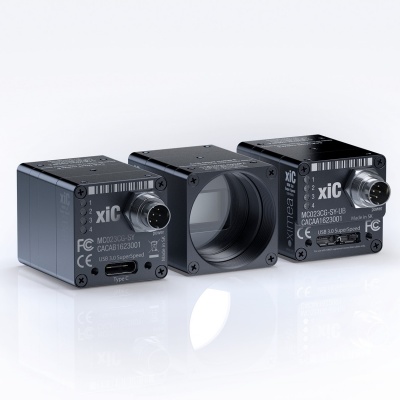

5 MP Monochrome CMOS Camera with USB 3.1 Gen 1 Interface.

Check conditions for the model version with Sony IMX264 sensor.



Specifications:
Resolution2464 x 2056
Sensor typeCMOS Matrix B/W
Sensor modelSony IMX250
Sensor size2/3"
Pixel size3.45 µm
Bits per pixel8, 10, 12
Dynamic range70.8 dB
Signal to noise ratio40.3 dB
Frame rates76 fps
Image data interfaceUSB 3.1 Gen 1
Data I/OGPIO IN, OUT
Power requirements2.85 Watt
Lens mountC or CS Mount
Weight38 grams
Dimensions WxHxD26 x 26 x 33 mm
Operating environment50 °C
Customs tariff code8525.80 30 (EU) / 8525.80 40 (USA)
ECCNEAR99



 MD061MU-SY

MD061MU-SY
  • 6.1 MPix
  • 16mm CCD Black and white Sony ICX694
  • USB 3.0 interface
  • 28 fps



 MC089CG-SY

MC089CG-SY
  • 8.9 Megapixel
  • 16.1mm CMOS, Global Shutter
  • Sony IMX255 Color
  • 43 fps









Comments

Hot
MC023MG-SY
2.3 Megapixel 1/1.2" CMOS, Global Shutter Sony IMX174 Monochrome 165 fp
Hot
MC023CG-SY
2.3 Megapixel 1/1.2" CMOS, Global Shutter Sony IMX174 Color 165 fps
Hot
MC031MG-SY
3.1 Megapixel 1/1.8" CMOS, Global Shutter Sony IMX252 Monochrome 122 fps
Hot
MC031CG-SY
3.1 Megapixel 1/1.8" CMOS, Global Shutter Sony IMX252 Color 122 fps
Now
MC050MG-SY
5 Megapixel 2/3" CMOS, Global Shutter Sony IMX250 Monochrome 76 fps
Hot
MC050CG-SY
5 Megapixel 2/3" CMOS, Global Shutter Sony IMX250 Color 76 fps
Hot
MC089MG-SY
8.9 Megapixel 16.1mm CMOS, Global Shutter Sony IMX255 Monochrome 43 fps
Hot
MC089CG-SY
8.9 Megapixel 16.1mm CMOS, Global Shutter Sony IMX255 Color 43 fps
Hot
MC124MG-SY
12.4 Megapixel 17.6mm CMOS, Global Shutter Sony IMX253 Monochrome 31 fps
Hot
MC124CG-SY
12.4 Megapixel 17.6mm CMOS, Global Shutter Sony IMX253 Color 31 fps
