  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 5 Mpix at 76 fps (up to 165 Fps with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

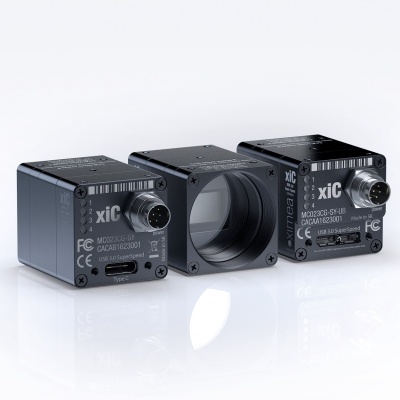

5 MP Color CMOS Camera with USB 3.1 Gen 1 Interface.

Check conditions for the model version with Sony IMX264 sensor.





Specifications:
Resolution2464 x 2056
Sensor typeCMOS RGB Bayer Matrix
Sensor modelSony IMX250
Sensor size2/3"
Pixel size3.45 µm
Bits per pixel8, 10, 12
Dynamic range70.8 dB
Signal to noise ratio40.3 dB
Frame rates76 fps
Image data interfaceUSB 3.1 Gen 1
Data I/OGPIO IN, OUT
Power requirements2.85 Watt
Lens mountC or CS Mount
Weight38 grams
Dimensions WxHxD26 x 26 x 33 mm
Operating environment50 °C
Customs tariff code8525.80 30 (EU) / 8525.80 40 (USA)
ECCNEAR99



 MD061CU-SY

MD061CU-SY
  • 6.1 MPix
  • 16mm CCD Color Sony ICX694
  • USB 3.0 interface
  • 28 fps



 MC089CG-SY

MC089CG-SY
  • 8.9 Megapixel
  • 16.1mm CMOS, Global Shutter
  • Sony IMX255 Color
  • 43 fps
