XIMEA

MD120CU-SY

제이엠제이 USB 3.0 with CCD scientific cameras - xiD 0 1,934 2017.04.13 23:18

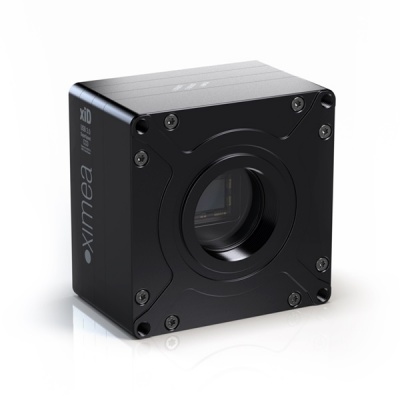

12 Megapixel Color CCD (Sony ICX834) Camera with USB 3.0
Multi-Tap (Quad Tap) readout from 4 channels allows exceptional 15 Fps

Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.

Specifications:
Resolution	12 MP 4242 x 2830 pixel
Sensor type	CCD RGB Color
Sensor model	SONY ICX834 AQG
Sensor size	16 mm
Sensor active area	13.2 x 8.8 mm
Pixel size	3.1 µm
Bits per pixel	8, 10, 12, 14 Bits
Readout noise typ.	7.8 / 9.3 / 16.6 e-
Dynamic range	63.5 / 61.7 / 57.6 dB
Signal to noise ratio	41.1 / 41.1 / 41.0 dB
Exposure range	60us - 1500s
Frame rates	15 Fps
On-chip binning	YES
Trigger to exposure delay	YES
Image data interface	USB 3.0 Superspeed
Data I/O	2IN/2OUT
Power requirements	4.9 Watt (typically*)
Lens mount	C-Mount
Weight	320 grams
Dimensions WxHxD	60 x 60 x 38 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99
