GPU image processing SDK

제이엠제이 PCI Express high-speed cameras - xiB 0 2,024 2016.02.24 19:14

16 Fastvideo-GPU-compression-2015-brochure.pdf (1.9M) 2016.02.25

PARTNER PRODUCT UNDER DEVELOPMENT

XIMEA partner, Fastvideo, is DEVELOPING realtime imaging solution that works with 12 and 20 MPix camera models from xiB line or xiT line.

Software is based on GPU image processing SDK with peak performance able to reach 1.2 GPix/s.

Full image processing pipeline can be done on single GPU.

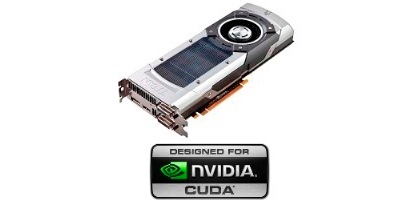

For 12-bit image with resolution 5120x3840 it takes under 16 ms on NVIDIA GeForce GTX Titan GPU.

RAW data from a camera undergoes image acquisition, data unpacking, shading correction, base color correction, demosaicing, LUT, JPEG compression, writing of compressed stream to AVI and storage in ssd/hdd.

Fastvideo image processing SDK for NVIDIA GPU will be available for Windows 7/8 and Linux (32/64) for NVIDIA GPU series 400, 500, 600, 700 and 900.

Demo version of SDK is accessible from Fastvideo website.

Note: There is an option to utilize raw bayer compression to achieve even higher performance, which is important for multiple camera applications.

What is xiLab?

Anything displayed with the reference „xiLab“ or in our xiLab space refers to technologies and prototypes that are developed and functional, but where XIMEA does not commit on release, time lines or final appearance.

We are keen to learn the market’s reaction to items displayed or exposed under this label.
