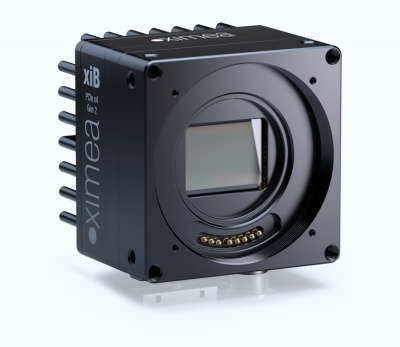

CB120MG-CM

제이엠제이 PCI Express high-speed cameras - xiB 0 1,840 2017.04.13 23:16

12 Megapixels Monochrome CMOS camera with CMOSIS CMV12000

PCIe speed of 20 Gbit/s allows 133 Fps @8bit or 100 Fps at 10 bit

4K, compact, high speed camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.

With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.

Specifications:
Resolution	12 MP 4096 x 3072 pixel
Sensor type	CMOS B/W monochrome
Sensor model	CMOSIS CMV12000
Sensor size	28 mm
Sensor active area	22.5 x 16.9 mm
Pixel size	5.5 μm
Bits per pixel	8, 10, 12
Dynamic range	60 dB
Signal to noise ratio	41,3 dB
Exposure range	20us
Frame rates	130 Fps (8 bit)
Image data interface	PCI Express (PCIe)
Data I/O	2IN/2OUT
Power requirements	8 Watt
Cooling	Heatsink optional
Lens mount	Active EF-mount
Weight	175 grams
Dimensions WxHxD	60 x 60 x 38 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99

MD120MU-SY

12 MPix
16mm CCD Black and white Sony ICX834
USB 3.0 interface
15 fps

CB120MG-CM-X8G3

12 Mpix at 330 Fps
CMOSIS CMV12000 Make to order
28 mm Black and white CMOS
PCI Express camera - 64 Gbit/s
