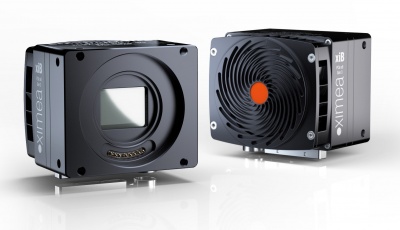

CB120MG-CM-X8G3

제이엠제이 PCI Express high-speed cameras - xiB 0 2,117 2017.04.13 23:08

CHECK AVAILABILITY - MTO

12 Megapixels Monochrome or NIR CMOS camera with CMOSIS CMV12000

PCIe Gen3 speed of 64 Gbit/s allows more than 330 Fps @8bit or 300 Fps at 10 bit

4K, compact, high speed camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.

Specifications:
Resolution	12 MP 4096 x 3072 pixel
Sensor type	CMOS B/W monochrome
Sensor model	CMOSIS CMV12000
Sensor size	28 mm
Sensor active area	22.5 x 16.9 mm
Pixel size	5.5 μm
Bits per pixel	8, 10, 12
Dynamic range	60 dB
Signal to noise ratio	41,3 dB
Exposure range	20us
Frame rates	330 Fps (8 bit)
Image data interface	PCI Express (PCIe) Gen3
Data I/O	2IN/2OUT
Power requirements	17 Watt
Cooling	Fan
Lens mount	Active EF-mount
Weight	175g
Dimensions WxHxD	70 x 60 x 57 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99

CB120MG-CM

12 Mpix at 133 Fps
CMOSIS CMV12000
28 mm Black and white CMOS
PCI Express camera - 20 Gbit/s

MC124MG-SY

12.4 Megapixel
17.6mm CMOS, Global Shutter
Sony IMX253 Monochrome
31 fps
