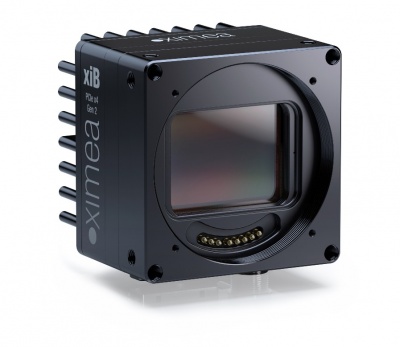

CB200MG-CM

제이엠제이 PCI Express high-speed cameras - xiB 0 1,935 2017.04.13 23:05

20 Megapixels Monochrome CMOS camera with CMOSIS CMV20000
PCIe speed of 20 Gbit/s allows 33 Fps at 12 bit

5K, compact, high resolution camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.

With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.

Specifications:
Resolution	20 MP 5120 x 3840 pixel
Sensor type	CMOS B/W
Sensor model	CMOSIS CMV20000
Sensor size	35 mm
Sensor active area	32.77 x 24.58mm
Pixel size	6.4 μm
Bits per pixel	12
Dynamic range	66 dB
Signal to noise ratio	41,7 dB
Exposure range	100us
Frame rates	33 Fps
Image data interface	PCI Express (PCIe)
Data I/O	2IN/2OUT
Power requirements	6 Watt
Cooling	Heatsink optional
Lens mount	Active EF-mount
Weight	175 grams
Dimensions WxHxD	60 x 60 x 38 mm
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99

MT200MG-CM

20 Mpix at 30 Fps
CMOSIS CMV20000
41 mm Black and white CMOS
Thunderbolt enabled camera

MC124MG-SY

12.4 Megapixel
17.6mm CMOS, Global Shutter
Sony IMX253 Monochrome
31 fps
