Luminescence lifetime imaging camera

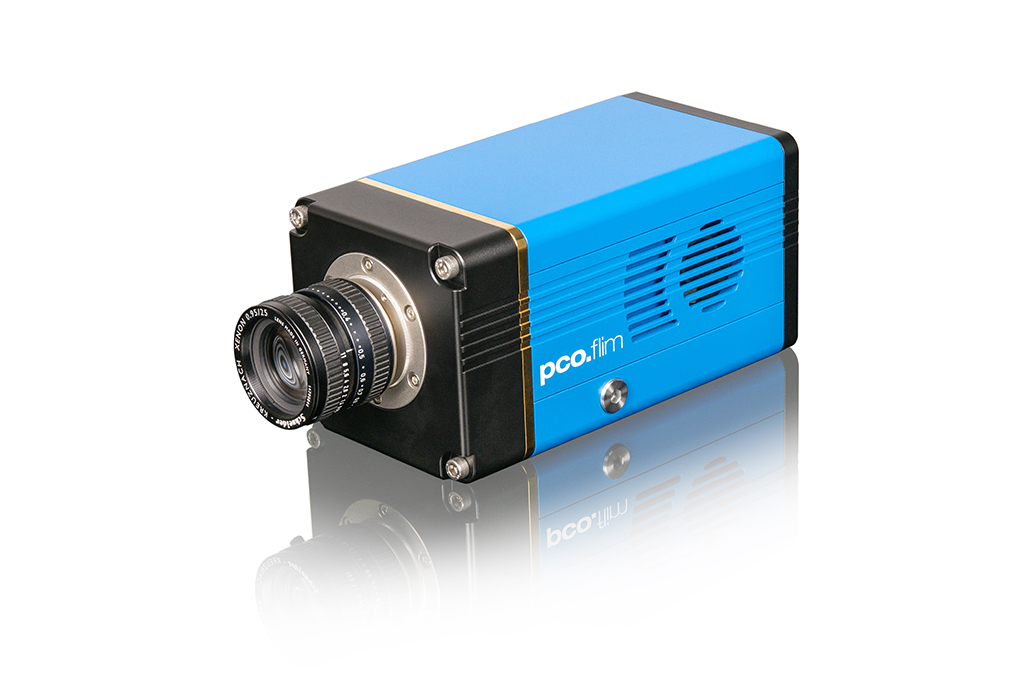

The pco.flim camera system is the first luminescence lifetime imaging camerausing a two tap CMOS image sensor. The camera can internally generate a wide range of frequencies and will also accept external modulation signals within a limited range of frequencies.

It features a variety of trigger input and output signals for easy system integration. Special software provides direct measurements and lifetime analysis.



Key Features



  • 100ps - 100µs lifetimes measurable
  • 5kHz - 40MHz modulation frequencies
  • 500kHz – 40MHz external modulation signals
  • modulation signal shape sinusoidal / rectangular
  • 1008 x 1008 pixel resolution
  • frequency domain FLIM
  • USB 3.0 interface
  • 39% quantum efficiency
  • 1000:1 dynamic range
  • 45 e- rms readout noise
  • 90 fps frame rate (2 tap readout)
  • 10 ns to 10 s selectable exposure times
  • vibration-free water cooling
  • special software for measurement and analysis



Technical Data



parameterunitsetpointpco.flim
resolution
(hor x ver)
pixel 1008 x 1008
pixel size
(hor x ver)
  5.6 x 5.6
modulation frequency (out)  5 kHz - 40 MHz
modulation frequency (in)  500 kHz - 40 MHz
peak quantum efficiency% 39
dynamic range A/Dbit 14



QE Curves

090158401d74075b567e6f52018d1a08_1456301

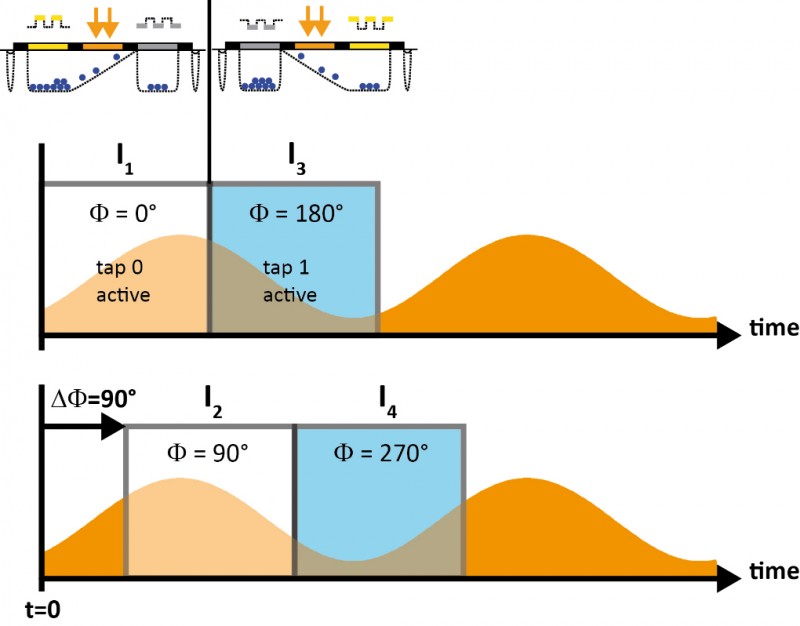

Pixel charge swing and corresponding sinus signal integration of the two taps.

Fluorescence Lifetime Imaging (FLIM) , Phosphorescence Lifetime Imaging (PLIM) FRET measurements with FLIM Pressure Sensitive Paint (PSP) Temperature Sensitive Paint (TSP) Optical chemical sensing
