pco.edge 3.1

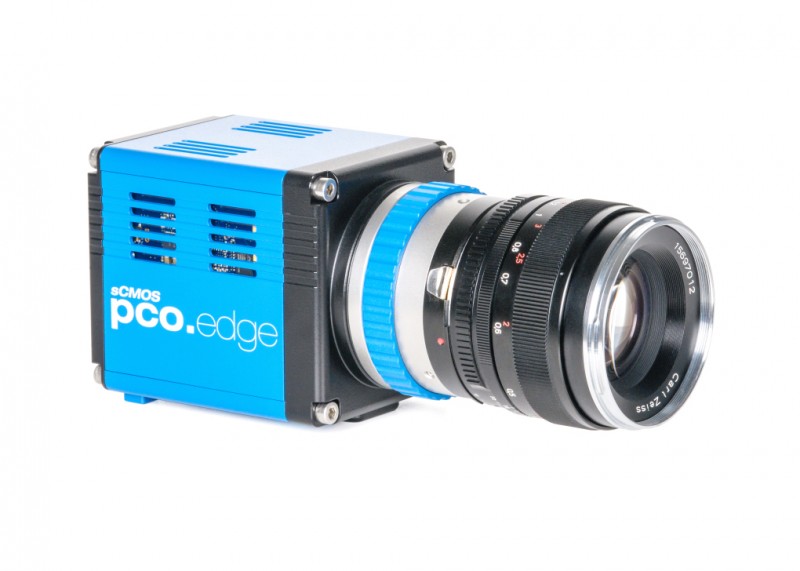

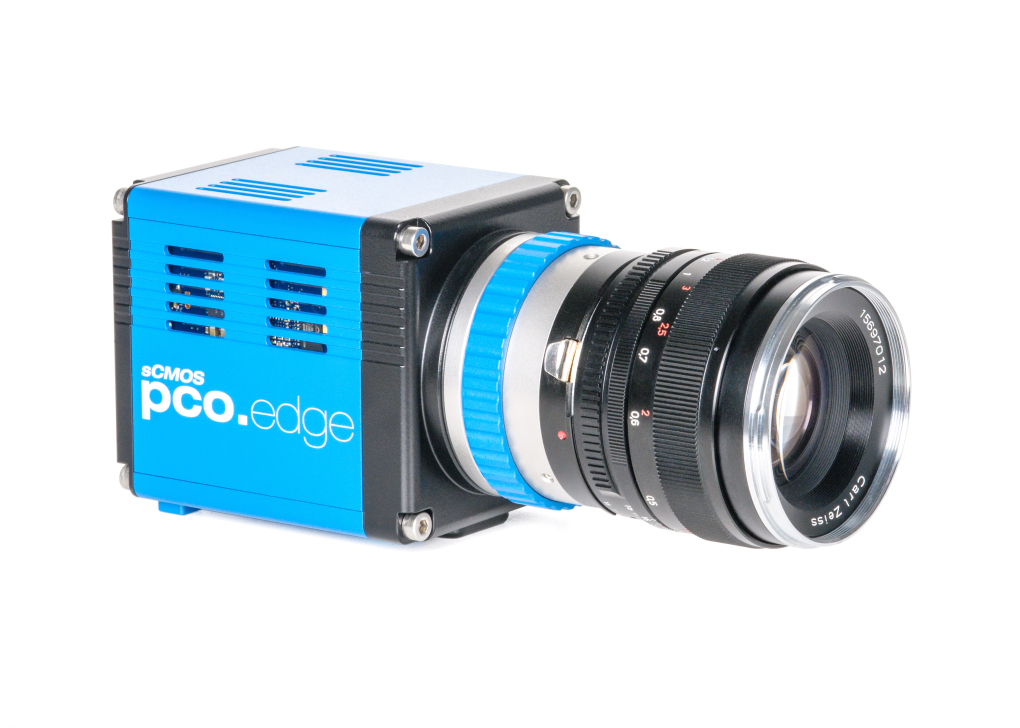

Revolutionary sCMOS technology in a compact design

The pco.edge 3.1 is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements.

PCO’s edge 3.1 camera system is designed for users who require high resolution, high frame rates, best 16 bit dynamic range, good quantum efficiency, selectable shutter options or optionally a color sensor.

Key Features

thermal stabilization at +5 °C
extreme low readout noise of 1.1 e- med
high resolution of 2048 x 1536 pixel
dynamic range of 27 000 : 1
quantum efficiency up to 60%
rolling shutter: 500µs to 2s
global shutter: 20µs to 100ms
maximum frame rate 50 fps
USB 3.0 interface
small form factor: 102 x 79 x 70 mm

Technical Data

parameter	unit	setpoint	pco.edge 3.1
resolution (hor x ver)	pixel		2048 x 1536
pixel size (hor x ver)			6.5 x 6.5
peak quantum efficiency	%	@ 590 nm typ.	> 60
dynamic range A/D	bit		16
readout noise	e- med		< 1.1
imaging frequency, frame rate	fps		50
exposure time range	s	@ rolling shutter @ global shutter @ global reset rolling readout	500
region of interest (ROI)			selectable
optical input			Nikon f-mount, c-mount
data interface			USB 3.0

QE Curves

Comparison between a scientific CCD (left) and a scientific CMOS (right, pco.edge) camera with identical illumination.
Monochrome Quantum Efficiency curve of the CIS2521 (EMVA1288 measurement)
Color Quantum Efficiency curves of the pco.edge (EMVA1288 measurement)

Areas of application

GSDIM, PALM , STORM , SPIM, SIM , live cell microscopy , single molecule detection , lightsheet microscopy , spinning disk confocal microscopy , FRET, FRAP, fluorescence spectroscopy , bio- & chemi-luminescence , high content screening , photovoltaic inspection, ophtalmology , flow cytometry
