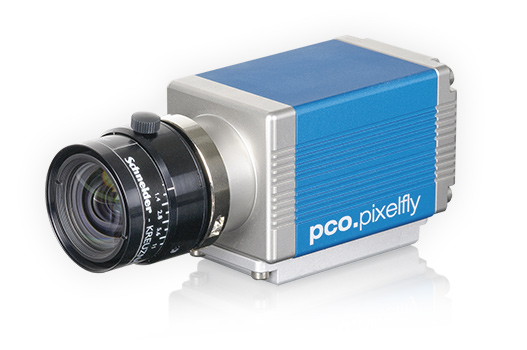

This high performance digital 14bit CCD camera system features state of the art in CCD and electronics technology. The pco.pixelfly usb has extraordinary high quantum efficiency, high dynamic range and very low readout noise. Available exposure times range from microseconds to a minute.
| parameter | unit | setpoint | pco.pixelfly usb |
|---|---|---|---|
| resolution (hor x ver) | pixel | 1392 x 1040 | |
| pixel size (hor x ver) | 6.45 x 6.45 | ||
| peak quantum efficiency | % | @ 540 nm typ. | > 60 |
| dynamic range A/D | bit | 14 | |
| readout noise | e- rms | @ 12 MHz @ 24 MHz | 6 7 |
| imaging frequency, frame rate | fps | @ full frame @ 12 MHz @ full frame @ 24 MHz | 7.3 13.5 |
| exposure time range | s | 1 | |
| binning | pixel | analog | 1 x 1 .. 4 x 4 |
| optical input | c-mount, Nikon adapter | ||
| data interface | USB 2.0 | ||
| interframing time | s | 1 |
Quantum efficiency curves of the pco.pixelfly usb CCD image sensor with two operation modes (measured by pco).
