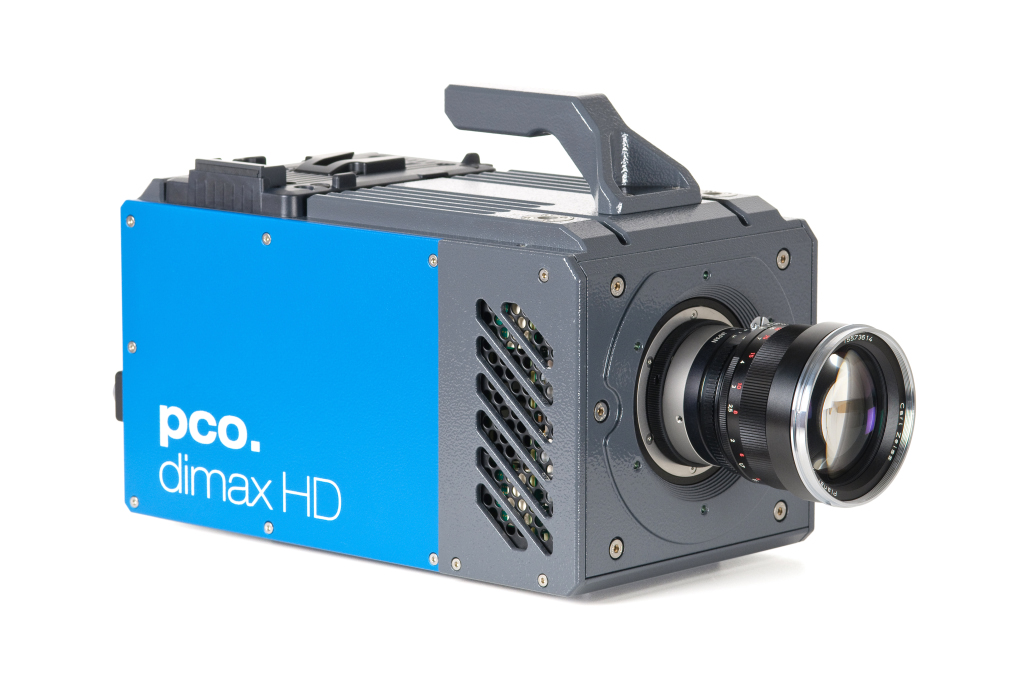

pco.dimax HD / HD+
leading image quality in high definition

The pco.dimax HD series combines advanced CMOS- and camera technology. High light sensitivity and best dynamic range complement each other to brilliant Full-HD images – with frame-rates of more than 2000fps.
Especially for automotive car safety tests the HD+ version with 1920 x 1440 pixelsoffers an aspect ratio of 4:3 to display full scale crash- or sledge testing scenarios. Both models provide a variety of trigger options and synchronization possibilities.

A smart battery control allows operation without direct power supply and backup of image data in the camera. The optional HD-SDI interface supplies images directly to HD-SDI devices.

Key Features

• 2128 fps @ Full HD resolution (1920 x 1080 pixel)
• 1603 fps @ 2.8 MPix resolution (1920 x 1440 pixel)
• 3822 fps @ 1.0 MPix resolution (1008 x 1000 pixel)
• 12 bit dynamic range
• excellent image and color quality
• NO additional black reference calibration required
• exposure time range 1.5 µs - 40 ms
• multiple trigger options
• master-slave camera synchronisation (up to 5 cameras)
• IRIG B timecode function
• smart battery control
• image memory in camera (camRAM up to 36 GB)
• interfaces: USB 3.0, GigE/USB 2.0, HD-SDI, CameraLink
